WINNTEC 20 TON Low-Profile Air Bottle Jack

09829

Click on image to enlarge

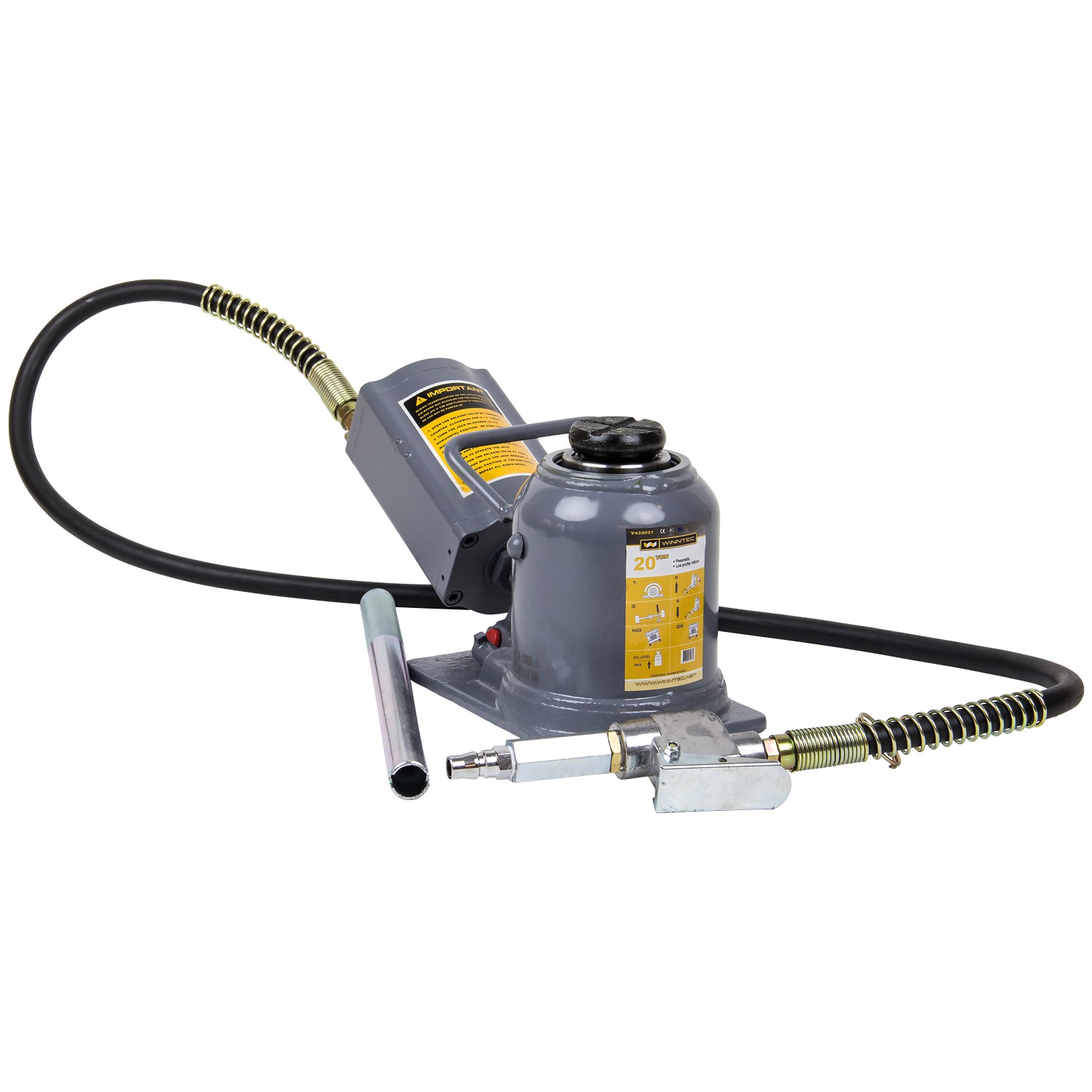

WINNTEC 20 TON Low-Profile Air Bottle Jack

09829

The WINNTEC® from SIP 20 TON Low-Profile Air Bottle Jack offers easier and safer lifting of vehicles both large and heavy, by providing powerful air-assisted horizontal and vertical performance, and lifting up to 260mm along with a versatile 80mm screw extension.

Suitable for automotive and commercial vehicles in garages and workshops.

KEY FEATURES

148mm to 260mm lifting height range
45mm screw extension for improved versatility
Low-profile design ideal for performance vehicles
Designed for horizontal and vertical operation
Aluminium air motor for heavy-duty performance
WINNTEC® from SIP 3-Year Warranty

WINNTEC 3-Year Warranty* | Find out more

Full Specification

The WINNTEC® from SIP 20 TON Low-Profile Air Bottle Jack utilises a combination of heavy-duty components and air-assisted lifting to provide powerful performance in automotive and commercial applications, offering safe support of all types of vehicles, including sports and performance cars with a lower profile.

Designed for horizontal and vertical operation, this bottle jack is extremely versatile.

Browse WINNTEC from SIP for high-quality and reliable garage equipment.

20 TON maximum weight capacity
148mm to 260mm lifting height range
45mm screw extension for improved lifting versatility
Low-profile design perfect for performance vehicles
Heavy-duty welded wide base helps spread weight evenly
Designed for both horizontal and vertical operation
Heavy-duty aluminium air motor for rugged performance
Heat-treated cylinder wall for added durability
Durable polished ram and chromed pump pistons
Integrated overload protection for safety
Air filters help prevent contamination
Quality European design for performance
WINNTEC® from SIP 3-Year Warranty

Technical Information

ITEM NO.	09829
Weight Capacity:	20 TON
Min. Lifting Height:	148mm
Max. Lifting Height:	260mm
Screw Extension:	45mm
Air Consumption:	5CFM (140ltr/min)
Net Weight:	10.00kg
Gross Weight:	11.00kg
Product Dimensions:
Packaged Dimensions:	165(H) x 165(W) x 355mm(D)
